Aircraft Navigation Lamp Set

Aircraft Navigation Lamp Set
Aircraft Navigation Lamp Set - Adjustable distribution unit, JR style plug , easy to use lighting set suitable for scale aeroplanes.

Simply hook up the distribution unit to an AUX channel on your receiver (gear switch would be ideal for instance) & connect to a battery and you can cycle through the 9 modes at the flick of a switch!

Mode:
1: Civil Aviation Standards: the left red and right green light are always on, the  strobe lights are flashing at the highest speed, the beacon light is flashing at the high speed and a set frequency, the landing lights are off or on sequentially.
2: Civil Aviation Standards: the left red, right green light and strobe lights are flashing in the highest speed at a certain frequency, the beacon lights are flashing at the high speed and a set frequency, the landing lights are off or on sequentially.
3 and 4: Flash alternately:left side flash two times, right side flash two times, alternately flash with different frequency.
5: The left red light, the right green light and the strobe lights are always on the beacon lights is flashing in the highest speed at a certain frequency, the landing lights are off or on sequentially.
6: Emergency forced landing light flashing mode: all the lights are flashing at the highest speed at the certain frequency
7: Normal Cruise flashing: all the lights flash slowly
8: All lights on
9: All lights off

Specs:
Input Voltage: 4.8~6V
Working Current: 100mA
LED Wire length: 800mm
AUX Cable Length: 300mm
Dimensions: 30 x 30 x 10mm
Weight: 30g

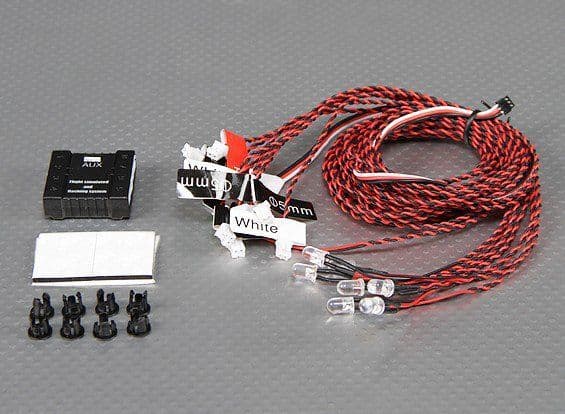

Included:
White LEDs x 5
Red LEDs x 2
Green LEDs x 1
Distribution Box x 1
All necessary accessorizes
