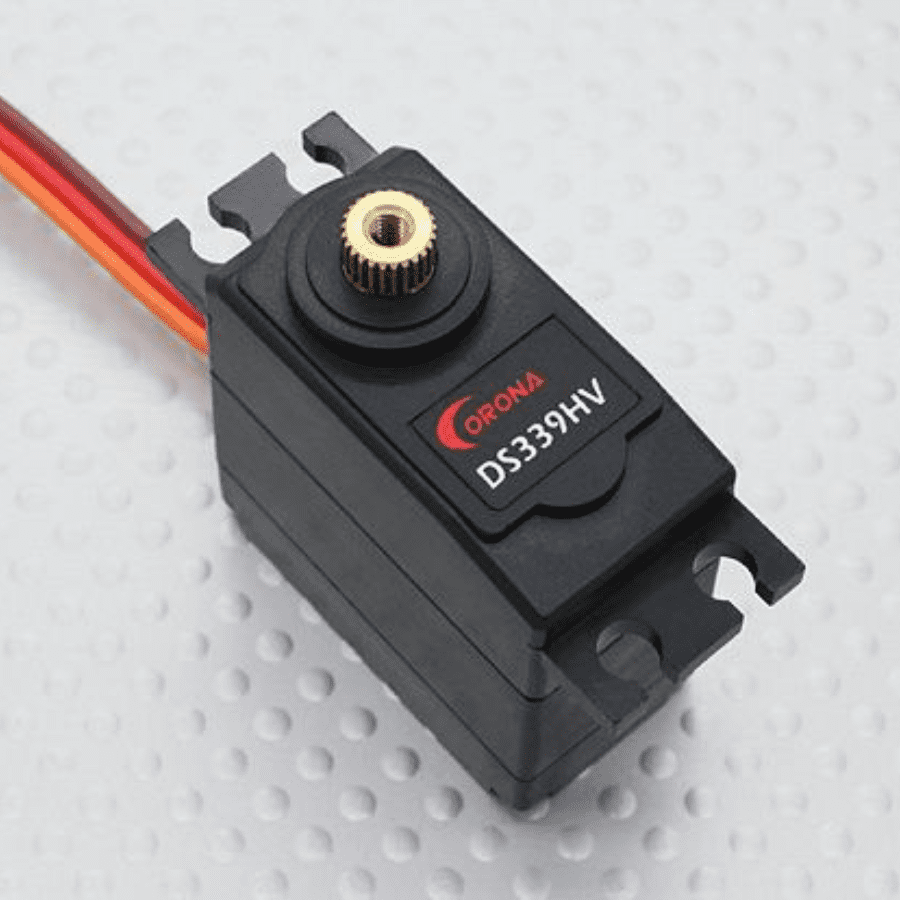

Corona DS339HV Digital Metal Gear Servo 5.1kg / 0.13 Sec / 32g

£12.99
Stock Status: In Stock
Corona DS339HV Digital Metal Gear Servo 5.1kg
Facebook
Twitter
Information
Corona DS339HV Digital Metal Gear Servo 5.1kg / 0.13 Sec / 32g
Model: DS339HV
Operating Voltage: 6.0V / 7.4V
Operating Current: 320mA / 420mA
Operating Speed: 0.14sec.60º/ 0.13sec.60º
Stall Torque: 4.5kg.cm / 5.1kg.cm
Size: 32.5X17X34.5mm
Weight: 32g
Dead Band: ≤3uSec
Operating Travel: 40º/one side pulse traveling 400us
Potentiometer: 5 slider/Direct Drive
Ball bearing: MR106
Gear: Metal
Connector wire: 300mm
Operating Temperature Range: -20c+60c
Specifications
  • MPN:
    DS339HV
  • Brand:
    Corona
  • Condition:
    New
  • Product Code:
    Corona DS339HV
  • Weight:
    0.03kg
