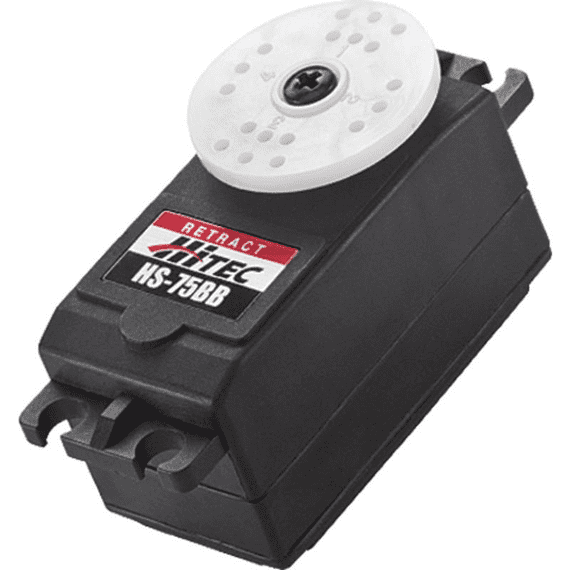

Hitec HS75BB Retract Servo Metal Gear/BB
With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or bang bang servo and only travels from one end to the other (180 degrees). If you require a proportional servo this size, use the Hitec HS-77BB.
Servo Technical Specifications
Low Profile Servo Size
1.73in 44mm Product Length
Product Width 23mm .9in
Product Height 25mm .98in
Shipping Weight 0.05kg 0.11lbs
Weight 35g 1.23oz
Weights & Dimensions
Motor Type - 3 Pole
Bearing Type - Top Ball Bearing
Speed (4.8V/6.0V) - 0.45 / 0.34 sec @ 180 deg.
Torque kg./cm. (4.8V/6.0V) - 6.6 / 8.2
Size in Millimetres - 43.94 x 22.86 x 24.89
Weight grams - 34.87
