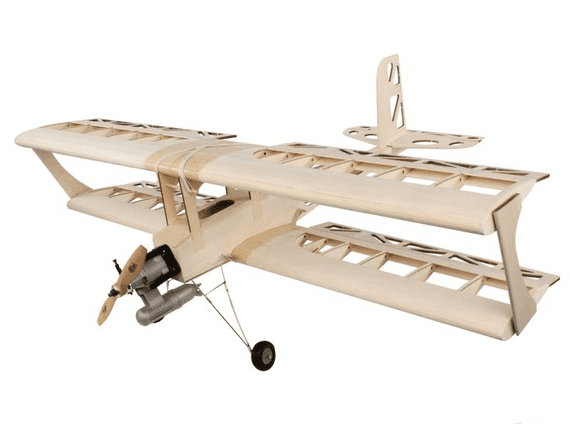

JP Panic Biplane Laser Cut Kit JPDAA1000
The New JP Panic Laser cut kit is a iconic and historic aerobatic biplane reinvigorated.
Because having fun never goes out of fashion
Key Features
A true all-time classic
Traditional ‘quick-build’ kit
Lightweight, high quality balsa and plywood construction
Laser-cut parts including ribs, lightening holes and wing sheeting cut to size
Simplified interlocking wing construction
One-piece pre-lightened tail surfaces
Pre-formed wire undercarriage
Suits a wide range of engine sizes
Easily converted for electric power
What's in the Box
Laser-cut balsa and plywood parts
Wire undercarriage parts ready for soldering
Saddle clamps and screws for undercarriage
8x Wing tip 19mm press studs
1x Engine mount
1x Full instruction manual
Needed to Complete
1x 61 - 90 Glow engine or electric equivalent
23x Polyester hinges
1x Double control horn (rudder)
3x Single control horns (ailerons, elevator)
Ball links and rod for upper aileron connection
Standard size servos, 5 minimum.
Closed loop system for rudder
Elevator push rod
Aileron push rods
Throttle push rod
Covering (recommended Oracover)
Fuel tank (8oz Minimum)
2x 2 1/2in Wheels
4x Wheel collets 10SWG
JP Panic kit Manual
Technical Specifications
Weights & Dimensions
Weight 2400g 84.66oz
Shipping Weight 1.83kg 4.04lbs
Product Length 970mm 38.19in
Product Wingspan 1,220mm 48.03in
Product Wing Area 63dm2 971.39in2
-
MPN:JPDAA1000
-
Bar Code:5051121234602
-
SmartOSC XBarcode:5051121234602
-
Model:Panic Kit
-
Brand:J Perkins
-
Product Code:JPDAA1000
-
Weight:2.1kg
