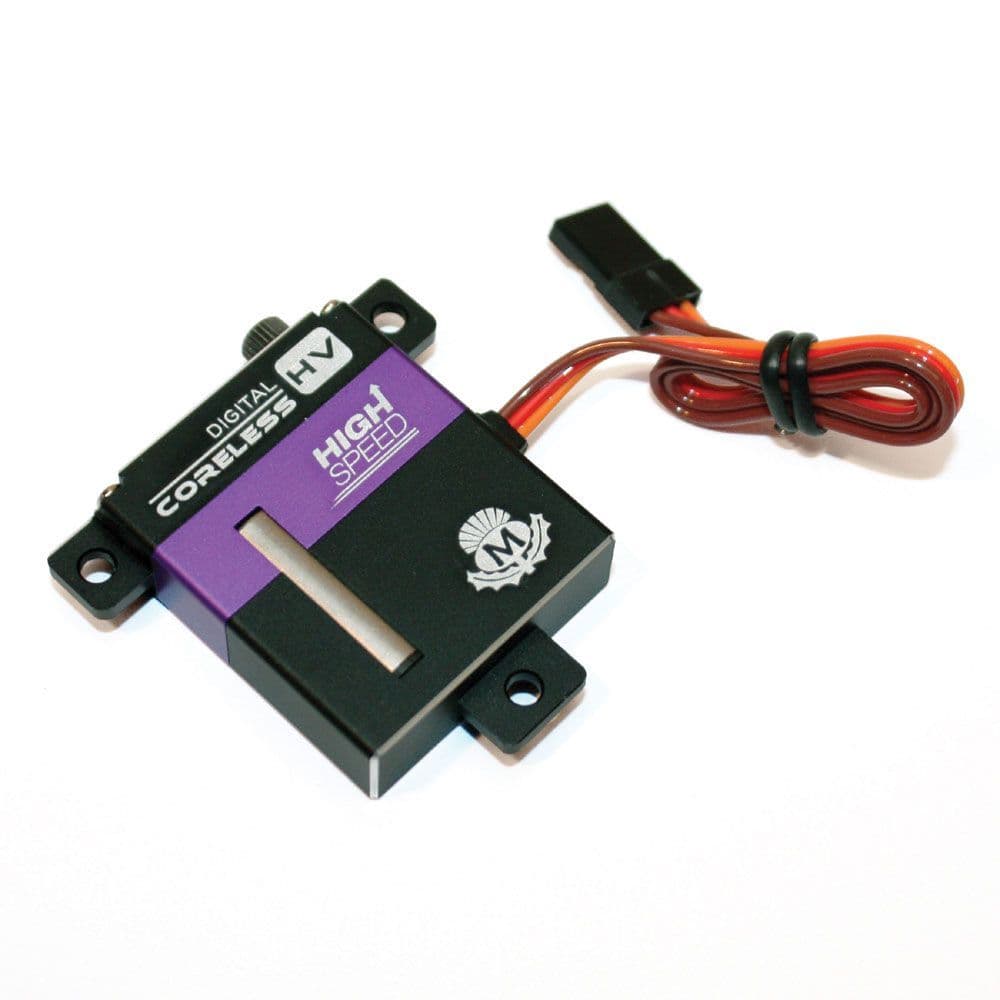

MacGregor MG2611WHV 11kg/0.10s HV WING SERVO

Features:

High Performance, Digital High Voltage Wing Servo

High-Precision Metal Gears With Hard Anodising

Full CNC Aluminium Case, with Anodised Purple Centre Case

High Quality Coreless Motor

Dual Ball Bearings

MacGregor MG2611WHV

Overview

The MG2611WHV is an ultra high speed and torque wing servo, part of MacGregor's range of high voltage digital servos designed for General use in RC Aeroplanes.

Battery chemistries such as Li-Po, Li-Ion, and Li-Fe have become very popular within the RC community. They are the standard for powering electric motors and have also gained popularity as receiver battery packs. The issue is the output voltage of these batteries is higher then the previous standard 4 - and 5-cell NiCd and NiMH packs, 4.8V and 6V respectively. The higher voltage is not an issue with the receivers but can be for the servos. Many servos will not operate at these higher voltages for very long before burning out the motors or electronics.

To get around this issue modellers have had to use a regulator to drop the voltage to an acceptable operating range for their servos, usually around 5 to 6 volts. The addition of a regulator adds a component that, should it fail, can cause the loss of a model.

MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

Specifications:

Dead band: 2µs

Working frequency: 1520µs / 330hz

Motor: Coreless Motor

Gearset: Full Metal

Operating Voltage: 5.0 ~ 8.4V

Operating Speed (6.0V): 0.13sec/60°

Operating Speed (8.4V): 0.10sec/60°

Stall Torque (6.0V): 8.7kg.cm

Stall Torque (8.4V): 11kg.cm

Dimensions: 30 x 10 x 35.5mm

Weight: 26g (0.92oz)

Connector Wire Length: JR 185mm

Bearing: 2BB
