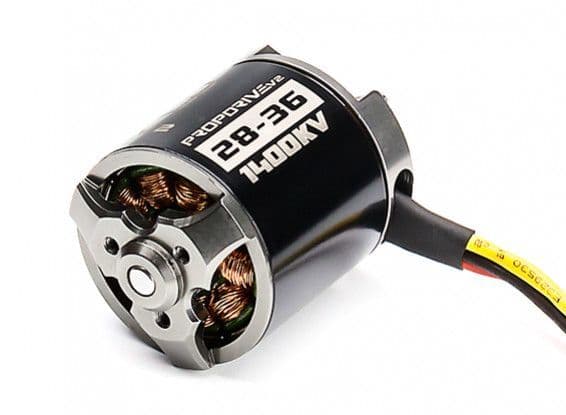

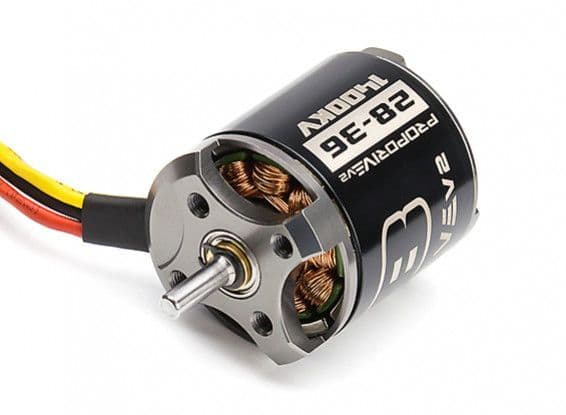

Home / RC Accessories / Brushless Motors / NTM Prop Drive Series Brushless Motors Product Description NTM V2 Prop Drive motors are rock-solid performance outrunner with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test. Spec. Model: NTM Prop Drive Series 2836 1400kv Kv: 1400rpm/v Poles: 6 Motor Wind: 10T Max current: 45A Max Power: 470W @ 11.1V (3S) / 560W @ 15V (4S) Shaft: 4mm Weight: 86g ESC: 45~55A Cell count: 3s~4s Lipoly Bolt holes: 16mm & 19mm Bolt thread: M3 Connection: 3.5mm Bullet-connector Prop Test Data: 8x4 - 11.1V / 266W / 24A/ 1.02kg thrust 8x4 - 14.8V / 560W / 38A / 1.48kg thrust Specifications MPN Does not comply EAN Does not comply Brand NTM Propdrive Condition New Weight 0.101kg Customer reviews No reviews left yet Write A Review Most RecentTop Rated Description NTM V2 Prop Drive motors are rock-solid performance outrunner with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test. Spec. Model: NTM Prop Drive Series 2836 1400kv Kv: 1400rpm/v Poles: 6 Motor Wind: 10T Max current: 45A Max Power: 470W @ 11.1V (3S) / 560W @ 15V (4S) Shaft: 4mm Weight: 86g ESC: 45~55A Cell count: 3s~4s Lipoly Bolt holes: 16mm & 19mm Bolt thread: M3 Connection: 3.5mm Bullet-connector Prop Test Data: 8x4 - 11.1V / 266W / 24A/ 1.02kg thrust 8x4 - 14.8V / 560W / 38A / 1.48kg thrust Reviews No reviews left yet Write A Review Most RecentTop Rated Attributes MPN Does not comply EAN Does not comply Brand NTM Propdrive Condition New Weight 0.101kg Delivery & Returns Customer Reviews NTM Prop Drive Series 28-36 1400kv / 560w Out of stock NTM Prop Drive Series 28-36 1400kv / 560w £23.99 Sorry, this item is out of stock
