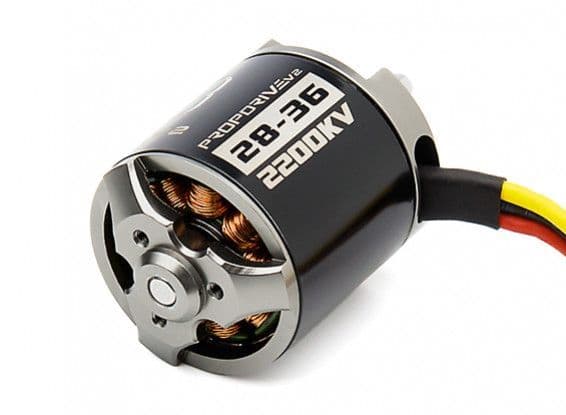

Home / RC Accessories / Brushless Motors / NTM Prop Drive Series Brushless Motors Product Description NTM Prop Drive Series 28-36 2200kv / 696w NTM Prop Drive motors are rock-solid performance outrunner with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test. Specs: Model: NTM Prop Drive Series 2836 2200KV KV: 2200rpm/v Poles: 3 Motor Wind: 7T Max current: 50A Max Power: 310W @ 11.1V (3S) / 696W @ 15V (4S) Shaft: 4mm Weight: 87g ESC : 40~60A Cell count: 3s~4s LIPO Bolt holes: 16mm & 19mm Bolt thread: M3 Connection:3.5mm Bullet connector Prop Test Data: 5x5 - 11.1V / 232W / 20.9A / 0.64kg thrust 5x5 - 14.8V / 516W / 34.9A / 1.021kg thrust 6x4 - 11.1V / 310W / 28.0A / 0.945kg thrust 6x4 - 14.8V / 696W / 47.0A / 1.17kg thrust Specifications MPN Does not comply EAN Does not comply Brand NTM Propdrive Condition New Weight 0.101kg Customer reviews No reviews left yet Write A Review Most RecentTop Rated Description NTM Prop Drive Series 28-36 2200kv / 696w NTM Prop Drive motors are rock-solid performance outrunner with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test. Specs: Model: NTM Prop Drive Series 2836 2200KV KV: 2200rpm/v Poles: 3 Motor Wind: 7T Max current: 50A Max Power: 310W @ 11.1V (3S) / 696W @ 15V (4S) Shaft: 4mm Weight: 87g ESC : 40~60A Cell count: 3s~4s LIPO Bolt holes: 16mm & 19mm Bolt thread: M3 Connection:3.5mm Bullet connector Prop Test Data: 5x5 - 11.1V / 232W / 20.9A / 0.64kg thrust 5x5 - 14.8V / 516W / 34.9A / 1.021kg thrust 6x4 - 11.1V / 310W / 28.0A / 0.945kg thrust 6x4 - 14.8V / 696W / 47.0A / 1.17kg thrust Reviews No reviews left yet Write A Review Most RecentTop Rated Attributes MPN Does not comply EAN Does not comply Brand NTM Propdrive Condition New Weight 0.101kg Delivery & Returns Customer Reviews NTM Prop Drive Series 28-36 2200kv / 696w Out of stock NTM Prop Drive Series 28-36 2200kv / 696w £23.99 Sorry, this item is out of stock
