PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator and balanced rotors.

The design and build the PROPDRIVE v2 motors completely in-house allowing NTM to control every aspect of production. The control the entire production line from material sourcing to machining, balancing and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

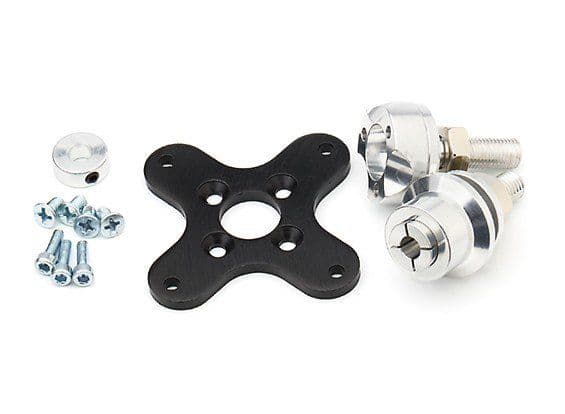

NTM have included a collet style adapter, as well as a bolt on prop adapter.

All performance figures are the result of realistic testing on our own motor dynos.

Specs:

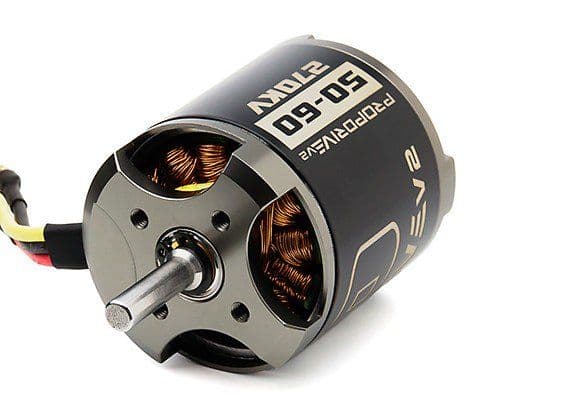

Model: PROPDRIVE v2 5060 270KV
KV: 270 KV
Max current: 90A
ESC: 100A
Cell count: 6s~8s Lipoly
Pole Count:  14
Bolt holes: 25mm
Bolt thread: M4
Shaft: 6mm
Connectors: 4mm Bullet
Weight: 438g

Prop data:
17x8 - 22.2V / 1312W / 60A / 4.87kg thrust
