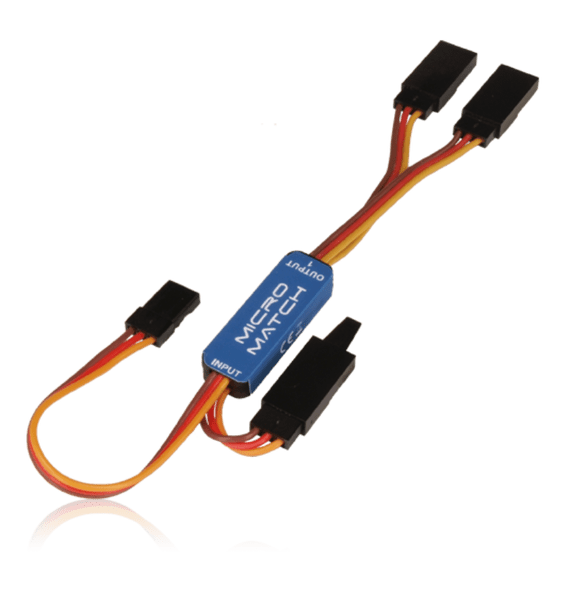

PowerBox Systems Micro Match 6800

£24.99
RRP: £27.99
Stock Status: In Stock
PowerBox Micro Match 6800
Facebook
Twitter
PayPal Checkout
Information

The PowerBox MicroMatch is the ideal solution for models where there is no space for a PowerBox, or where the PowerBox in use does not include the MicroMatch’s functions.

The MicroMatch provides a very simple method of fine-tuning the servo travels and centre positions of both outputs. Its main application is for systems where two servos operate a single control surface; the unit can match them electronically to run exactly in parallel. This prevents the servos counteracting each other, and allows the torque and speed of both servos to be exploited to the full. A further positive effect is a significant reduction in current drain and servo wear.

The MicroMatch includes a servo reverse function which changes the direction of rotation of the servos with a single click. This is ideal for elevator servos which are installed as a mirror-image pair, allowing them to be operated using just one channel. Further applications are twin rudders or steerable nosewheels.

All adjustments can be carried out using the USB interface or a BlueCom adapter. The BlueCom option offers one very practical feature: it is possible to make direct adjustments at the servo output arm, and alter the settings conveniently using a mobile phone and a Bluetooth link!

The MicroMatch includes an update facility, allowing for possible future expansions to the range of functions.

Features

Servo-match function on both outputs

Servo reverse, accurate adjustment of centre and end-points

Programmable using a telephone app (BlueCom) or a PC (USB)

Quick reverse function

16-bit processor for high-speed signal processing

4096-step resolution to suit the latest generation of servos

Interference suppression and signal amplifier function

Ultra-high current capacity: limited only by the plug and socket connection

Can be updated using BlueCom or the USB Interface Adapter

Technical Data

Operating voltage 4.0V - 9.0V

Current drain Power-on state 22mA

Maximum load current >10A

Signal input PWM

Channels 1

Programmable servo outputs 2

Servo signal resolution 4096

Signal frame rate 12ms, 15ms, 18ms, 21ms

Dimensions 33 x 10 x 5.5 mm

Weight 7.5g

Temperature range -30°C to +75°C

Specifications
  • MPN:
    Power Box Micro Match
  • EAN:
    6800
  • Brand:
    PowerBox Systems
  • Product Code:
    PowerBox Systems Micro Match 6800
  • Weight:
    0.024kg
