Ripmax Quantum II 20 Speed Brushless Motor M-Q2-20

£29.99
£28.99
Ripmax Quantum II 20 Speed Brushless Motor M-Q2-20

Product information

Ripmax Quantum II 20 Speed Brushless Motor M-Q2-20

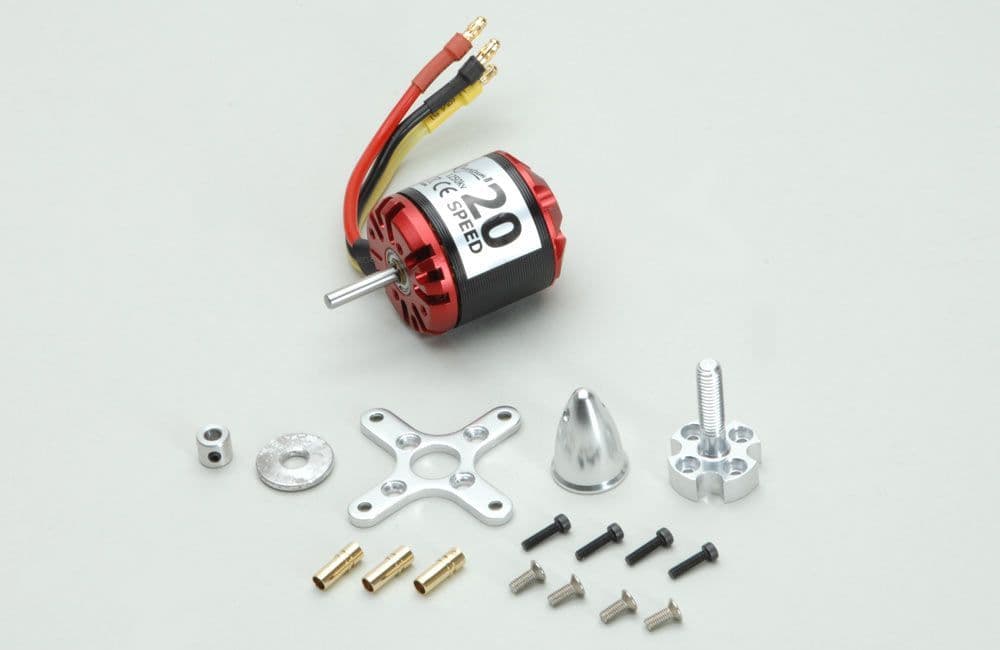

The Ripmax Quantum II 20 Speed Brushless Motor M-Q2-20  range of electric motors are designed to offer performance, efficiency, build quality and value-for-money in a wide array of sizes. Every motor includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.

This .20 size speed motor is designed as an equivalent to a .20/21 2-stroke glow IC motor when used in higher speed,higher RPM applications such as the Ripmax Dagger (A-ARTF6906).

.20 Speed 2-Stroke Equivalent Setup:
• 4S 2200mAh Li-Po
• 60A Brushless ESC
• 7x7" Propeller

Specification
Connectors: Gold 4.0mm Bullets
Length: 50mm
Weight: 151g
Max. Continuous Current (Amps): 50A
Diameter: 35mm
KV RPM: 1250
LiPo: 3 - 4S
Speed Controller: 40 - 60A (Rec.)
Shaft dia: 4mm

Technical specifications

Brand: Ripmax Quantum
Code: Quantum M-Q2-20
Weight: 0.101kg
MPN: M-Q2-20
