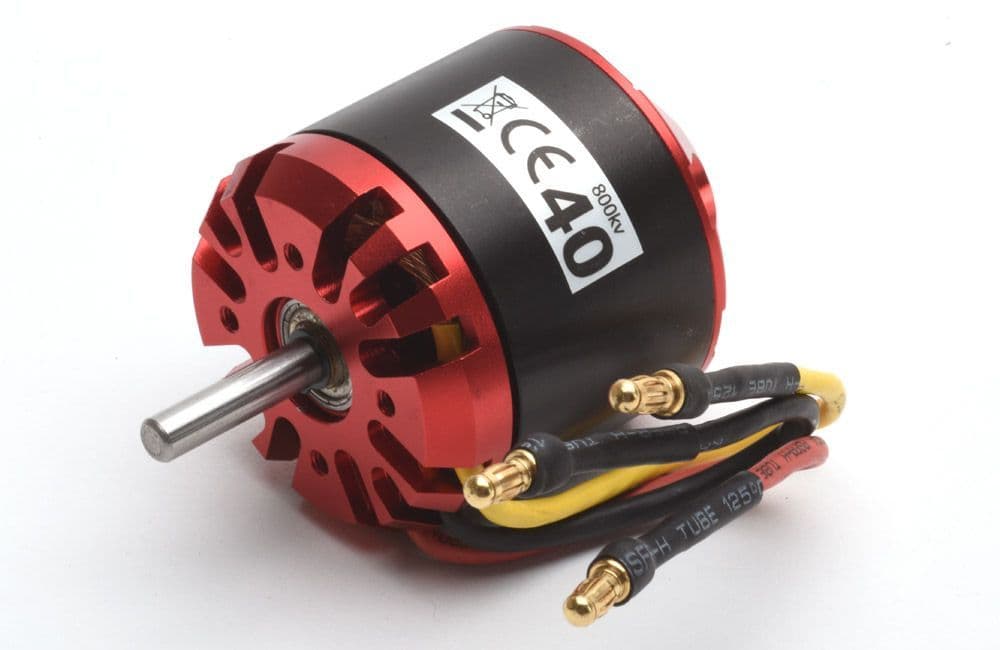

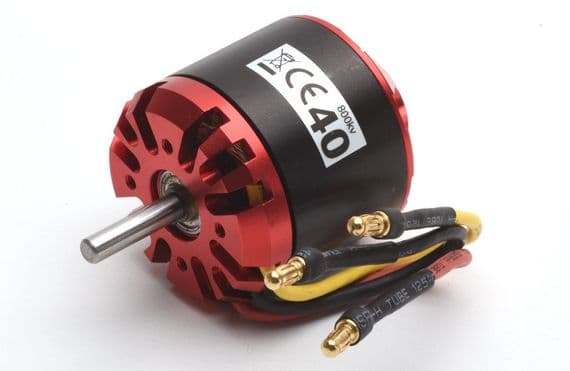

Ripmax Quantum II 40 Brushless Motor M-Q2-40

Ripmax Quantum II 40 Brushless Motor M-Q2-40

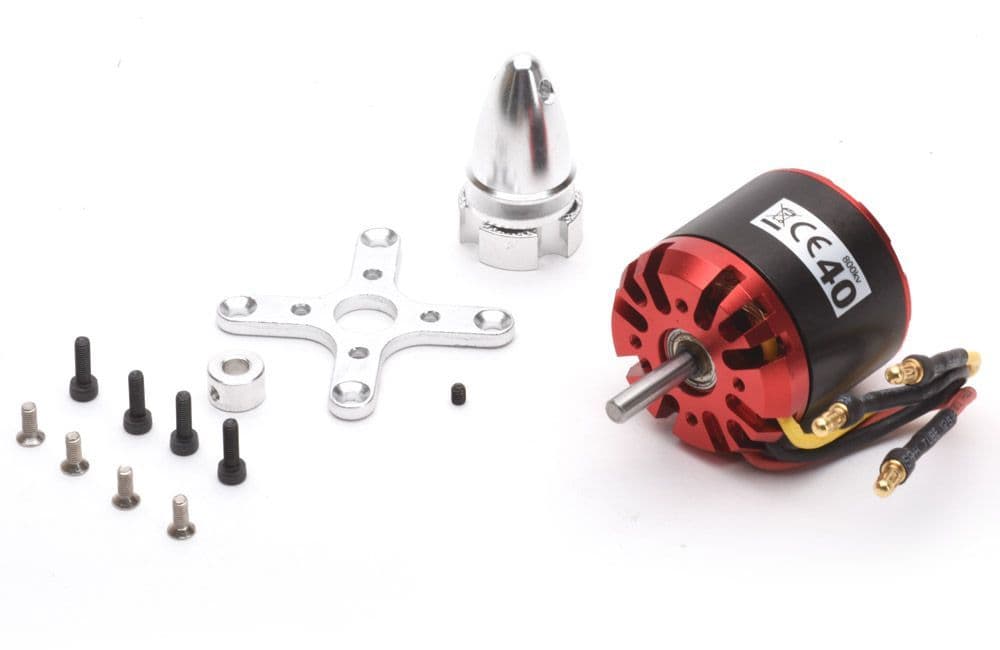

The Ripmax Quantum II 40 Brushless Motor M-Q2-40 range of electric motors are designed to offer performance, efficiency, build quality and value-for-money in a wide array of sizes. Every Ripmax Quantum II 40 Brushless Motor M-Q2-40 includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.

This Ripmax Quantum II 40 Brushless Motor M-Q2-40 motor is designed as an equivalent to a .40/46 2-stroke glow IC motor and is suited to a wide variety of sports and scale models. For a .40 use 4 cells and for .46 use 5 cells

.40 2-Stroke Equivalent Setup:

• 4S 4500mAh Li-Po

• 60A Brushless ESC

• 12x9W" Propeller

Specification

Connectors: 4mm Bullet

Length: 50mm

Weight: 210g

Max. Continuous Current (Amps): 60A

Diameter: 42.5mm

KV RPM: 800

Thread: M8

LiPo: 3 - 7 Cells

Speed Controller: 60A Brushless (Req'd)

Shaft dia: 5mm
