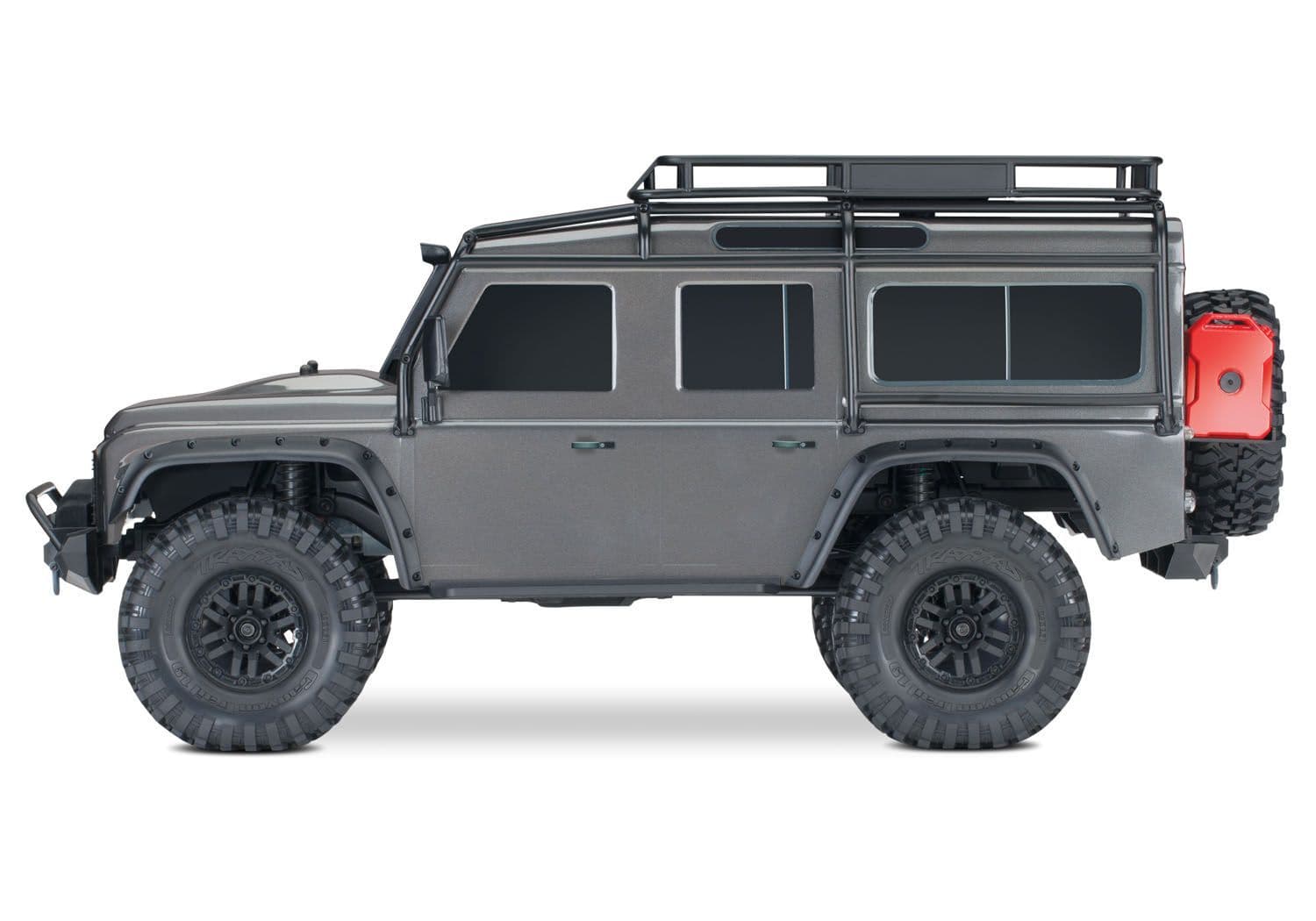

Defender TRX-4 Silver 1:10 4X4 Electric Trail Crawler RTD (+ TQi, XL-5 HV, Titan
Take the Path Less Traveled
The Traxxas TRX-4® Scale and Trail™ Crawler is an all-new Traxxas design that is loaded with innovation that instantly obsoletes the status quo with exciting new features, versatility, and capability. In other words, we built it the Traxxas way, rugged, powerful, and ready for fun!
Underneath the authentic scale look is a machine built for extreme off-road capability that takes you to new places and new adventures. Exclusive portal axles deliver maximum ground clearance that dramatically turns “no way” into “no problem.” Whether you are enjoying outdoor trails or getting technical on the rocks, the remote-locking front and rear differentials and high/low range transmission provide unmatched driving versatility.
Land Rover and the Land Rover Logo are trademarks owned and licensed by Jaguar Land Rover Limited
|Length:||23.07 inches (586mm)|
|Front Track:||9.78 inches (249mm)|
|Rear Track:||9.78 inches (249mm)|
|Ground Clearance:||3.14 inches (80mm)|
|Height:||11.48 inches (292mm)|
|Wheelbase:||12.75 inches (324mm)|
|Front Shock Length:||3.54 inches (90mm)|
|Rear Shock Length:||3.54 inches (90mm)|
|Front Wheels:||1.9 x 1.02 inches (49 x 26mm)|
|Rear Wheels:||1.9 x 1.02 inches (49 x 26mm)|
|Front Tires:||4.64 x 1.89 inches (118 x 48mm)|
|Rear Tires:||4.64 x 1.89 inches (118 x 48mm)|
|Speed Control:||XL-5 HV|
|Motor (electric):||21T Reverse Rotation|
|Transmission:||2-speed Hi-Lo, Remote Shifting|
|Differential Type:||4 Gear, Remote Locking|
|Chassis Structure / Material:||Steel Ladder Frame with Nylon Composite Crossmembers|
|Brake Type:||Electronic “Hill Hold”|
|Drive System:||Shaft Driven 4WD|
|Steering:||Chassis Mounted Servo|
|Servo:||2075X Metal Gear|
|Transmitter:||TQi 2.4 GHz 4-Channel Transmitter|
|Battery Tray:||158.75 L x 47 W x 23/26mm H|
Remote Locking Differentials
Traxxas gives you the versatility to lock and unlock the front and rear differentials to suit your driving needs directly from your transmitter. Leave the differentials unlocked for relaxed driving on the trail with smooth, tight turning and better handling at high speeds. When the trail gets technical, lock the front and rear differentials, or just the front, for superior grip over extreme terrain. Our patented design has been proven rugged and capable in the Traxxas Summit. New sleeved micro cables control the differential action for scale appearance, without limiting the huge suspension articulation.
Ultimate Ground Clearance
The TRX-4 Scale and Trail Crawler is equipped right out of the box with Traxxas game-changing portal axle set.
Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles (and not get stuck), your tires would have to be over an inch taller than the TRX-4’s tires. Straddling boulders with ease, the TRX-4 chassis definitely takes the path less travelled and simply leaves all the others behind.
The TRX-4 Trail and Scale is being shown with the legendary Land Rover Defender body, complete with exciting scale details for an authentic 4-wheelin’ experience. We’ve included a functional spare wheel and tire, an off-road jack, and spare fuel canisters. Secure your trail gear in the included roof basket. There’s even a snorkel for taking the waterproof TRX-4 through creek crossings. The rugged bumpers provide clearance and protection and are equipped with recovery D-rings. The front bumper is designed to be compatible with many popular off-road accessories.
3S Power System
The new XL-5 HV electronic speed control brings 3S LiPo capability for stronger, more efficient running. New speed control profiles have been added for smooth and precise control. A new Trail profile facilitates smooth driving for most of your adventures, while a new Crawl profile introduces hill hold and instant reverse for extremely technical courses. Either will help you navigate obstacles with ease, right from the start. Long run times, up to 2 hours, are possible with a Traxxas 3S 5000mAh iD LiPo battery pack!
Aluminum GTS Shocks
All new oil-filled coil-over GTS shocks were created exclusively for the TRX-4 chassis. These silver-anodized aluminum units deliver silky-smooth damping performance and feature threaded shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.
Leave the tools in the bag! The Traxxas TRX-4 chassis is built to handle the rigors of remote locations and all-day driving fun. The foundation begins with a pair of 1.5mm thick steel frame rails. Large diameter steel links and heavy-duty, extra-wide rod ends keep the suspension firmly mounted. Hardened steel CV-style half-shaft joints are ultra reliable, while the brushless-ready steel portal axle and transfer case gears are smooth and quiet. Traxxas’ composite materials have been refined over three decades for the ultimate in strength and durability.
Steep approach angles front and rear allow the TRX-4 Scale and Trail Crawler to tackle big obstacles head on. The front motor design biases weight forward for superior climbing ability compared to other design
Instruction manuals and parts Explosions sheets
Brushed Car Technical Specifications
Weights & Dimensions
|Motor/Engine||Titan 550 Brushed|
Model:Traxxas Land Rover Defender TRX-4 Silver
