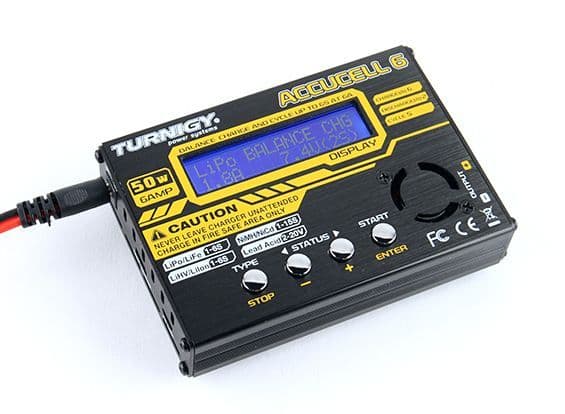

Turnigy Accucell-6 50W 6A Balancer
Charger Lipo Life LiHV Nimh Nicad Capable
The Turnigy Accucell 6 50W Balance Charger utilises quality FET's and resistors to accurately balance and charge LiPoly, LiFe, LiHV, NiMH, Nicd and Lead Acid batteries.
If you are looking for a charger for your Bolt batteries this unit is perfect as a low cost, go anywhere solution. The Accucell-6 will handle LiHV/LiPoly/LiFe up to 6S and NiMH/NiCd up to 15S and shows individual cell voltage throughout the charge cycle.
The intuitive menu system means charging and cycling is an easy process and can be done quickly and accurately. And because this is a 12v DC charger you can power it up at the field using a 12v car battery or at home with a 12v power supply.
Turnigy Accucell-6 50W 6A Balancer Charger Lipo Life LiHV Nimh Nicad Capable
It is also able to connect this charger to your PC using a USB cable (not supplied) so you can monitor pack voltage, cell voltage and other data through real-time graphs during charging. You can also control charging and update firmware from "Charge Master".

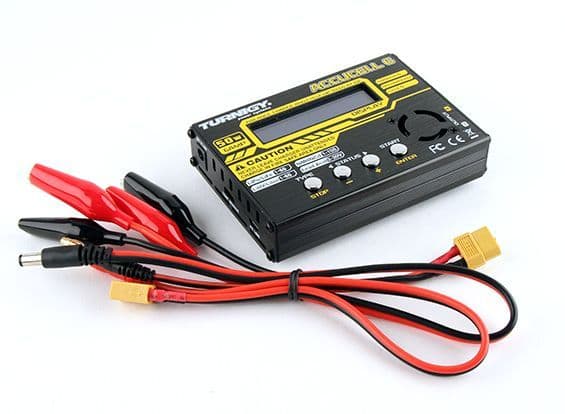

Also included with the Accucell-6 is an input lead and XT60 equipped charge leads with optional alligator clips for maximum versatility.
There are several chargers now entering the China market that look similar to the Accucel. These chargers are produced with cheaper FET's and are unfortunately much less accurate and very unsafe. There has been reports of the copied chargers over-charging packs and not balancing correctly.
The Accucell-6 is the first charger in the market with this PCB layout Circuit design. Any charger with the same circuit diagram is most definitely a copy. We have tested the copied chargers ourselves, their componentry is of a very low quality and the manufacturing company that has produced the copy has used a process of duplicating our CPU(MCU)'s hex file and flashed a similar chip(MCU) to produce a similar product. This means they do not have the original code and therefore cannot bug-test (QC) or update the charger at any point. The chargers have CE and RoHS certification, proving their safety.
Plus, thousands of customers the world over have used our chargers with excellent results.
Your batteries are expensive. We understand this and that’s why we will not carry low-quality charging devices.
Trust only in TURNIGY quality charging devices.
• Microprocessor controlled
• Individual cell balancing
• LiHV, Li-ion, LiPoly and LiFe capable
• Ni-Cd and NiMH capable
• Delta-peak sensitivity (NiMH/NiCd)
• Lead Acid capable
• Large range of charge currents
• Terminal Voltage Control (TVC)
• Lipo Battery Meter
• Battery Internal Resistance Meter
• Store function, allows safe storage current
• Time limit function 1~720 minutes
• Temperature Cut-off (20-80 degree Celsius/68-176 Fahrenheit)
• Input voltage monitoring. (Protects car batteries at the field)
• Data storage (Store up to 10 packs in memory)
• Battery break in and cycling. (1-5 cycles)
Input Voltage: 11~18v
Circuit Power: Max Charge: 50W / Max Discharge: 5W
Charge Current Range: 0.1~6.0A
Balance Cells: 2-6 cells
NiMH/NiCd Cells: 1~15
LiHV /LiIon/LiPoly Cells: 1~6
Pb battery Voltage: 2~20v
This charger has a JST-XH balance charge plug, which makes it compatible with Zippy, HXT, TURNIGY and any pack with a JST-XH adapter.
1. Accucell 6 50W Charger
2. Alligator clip input lead
3. with Banana connector charging Cable (340mm)
4. to Alligator clip charging cable (180mm)
Note: Power supply, power source cable, temperature sensor and USB cable are not included.
MPN:Turnigy Accucell-6 50W
EAN:Turnigy Accucell-6 50W
